Rust API

This page is a narrative guide for calling the plugin from Rust. The full type reference lives on docs.rs/tauri-plugin-widgets.

When you need Rust

Use the Rust side when:

• a background task (timer, network, push) must refresh a widget without a webview
• you embed the plugin inside another Rust library / sidecar
• you want compile-time layout construction instead of hand-written JSON

You do not need Rust for ordinary JS/TS apps — setWidgetConfig from guest-js is enough.

Installation and init

fn main() {
    tauri::Builder::default()
        .plugin(tauri_plugin_widgets::init())
        .run(tauri::generate_context!())
        .expect("error while running tauri application");
}

Optional plugin config (plugins.widgets in tauri.conf.json) controls the macOS / iOS App Group and host transport. See Plugin config, Transport, and Platform setup.

Building a config

json! — the default path

Zero new types, copies straight from gallery / JS docs, checked only at runtime:

use tauri_plugin_widgets::models::WidgetConfig;

let cfg: WidgetConfig = serde_json::from_value(serde_json::json!({
    "small": {
        "type": "vstack",
        "padding": 12,
        "children": [
            { "type": "text", "content": "72°", "fontSize": 36, "fontWeight": "bold" }
        ]
    }
}))?;

Typed structs — when you want the compiler

WidgetElement variants are newtypes over named structs, so ..Default::default() works:

use tauri_plugin_widgets::models::{
    text, vstack, ElementStyle, FontWeight, PaddingValue, TextElement, VStackElement,
    WidgetConfig, WidgetElement,
};

let cfg = WidgetConfig::small(WidgetElement::VStack(VStackElement {
    children: vec![WidgetElement::Text(TextElement {
        content: "72°".into(),
        font_size: Some(36.0),
        font_weight: Some(FontWeight::Bold),
        ..Default::default()
    })],
    spacing: Some(8.0),
    style: ElementStyle {
        padding: Some(PaddingValue::Uniform(12.0)),
        ..Default::default()
    },
    ..Default::default()
}));

Short helpers used in examples:

use tauri_plugin_widgets::models::{text, vstack, WidgetConfig};

let cfg = WidgetConfig::small(vstack(vec![
    text("72°").font_size(36.0).into(),
]));

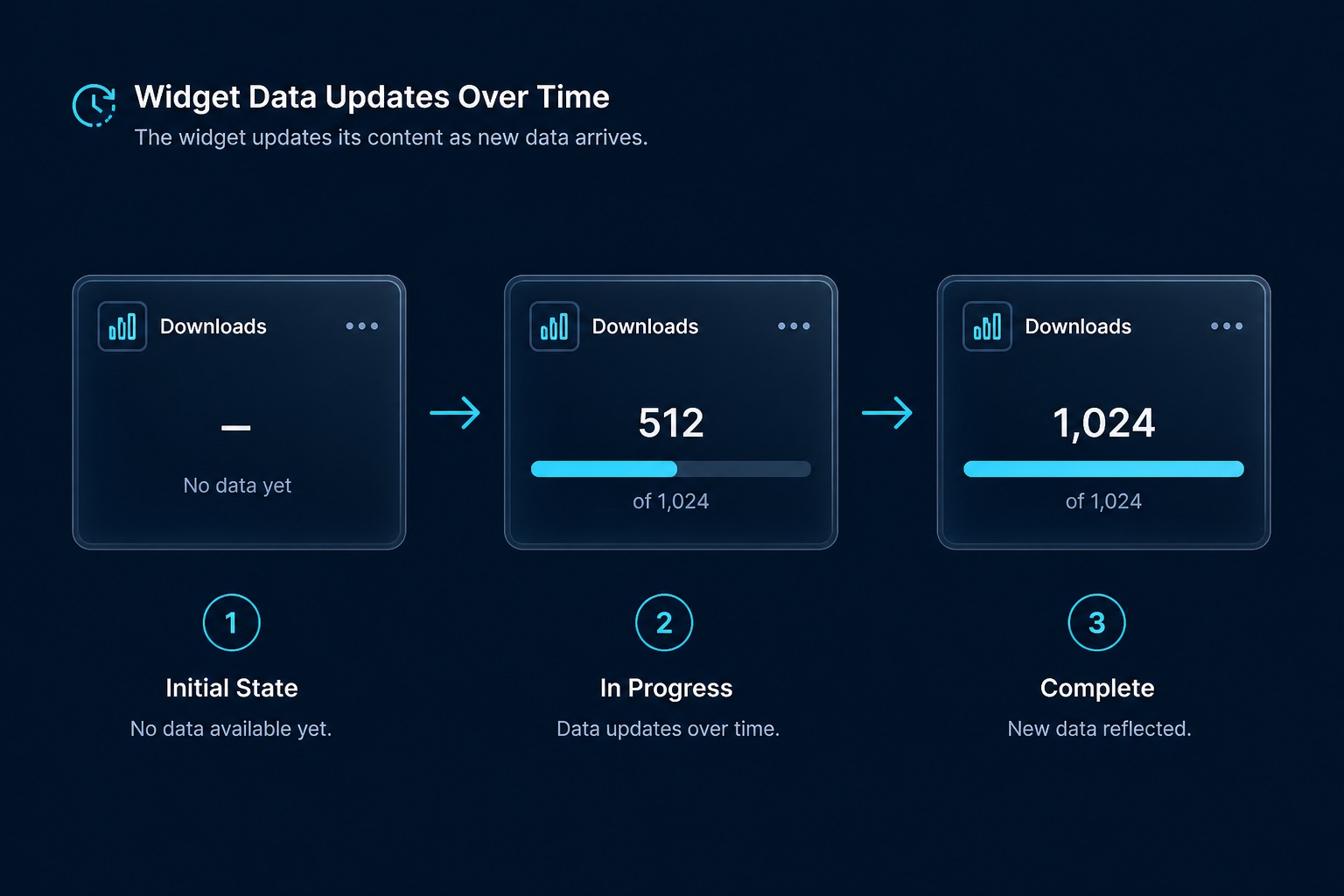

Updating from a background thread

Typical host path:

use tauri::Manager;
use tauri_plugin_widgets::{
    models::{text, vstack, WidgetConfig},
    WidgetExt,
};

fn refresh(app: &tauri::AppHandle) -> tauri_plugin_widgets::Result<()> {
    let cfg = WidgetConfig::small(vstack(vec![text("72°").font_size(36.0).into()]));
    let w = app.widget();
    w.set_widget_config(&cfg, "group.com.example.app", "weather", false)?;
    w.reload_all_timelines()?;
    Ok(())
}

set_widget_config writes the IR into shared storage and returns ApplyOutcome (written, reload, optional skip). A successful call is not proof that a native reload ran — inspect reload (Ok / Throttled / Skipped / Failed). reload_all_timelines asks WidgetKit / the desktop webview to repaint.

Receiving actions

Two complementary paths:

1. Listen for the widget-action Tauri event (emitted when pending actions are drained).
2. Call poll_pending_actions(group) yourself — returns Vec<WidgetActionEnvelope> (typed, not raw Value).

Diagnostics

get_widget_diagnostics(group) returns recent WidgetRenderReceipt entries (what each surface actually painted, plus skipped nodes on Adaptive Cards).

Errors

Error covers IO / JSON / unsupported operations. Error::Unsupported is the desktop signal for APIs that only exist on mobile (see below).

Platform asymmetry

API	Android	iOS / macOS	Desktop
set_register_widget	stores provider FQCNs	stores WidgetKit kinds (advisory)	no-op (Ok(true))
request_widget	pin-widget UI	bridge (may be OS no-op)	Err(Unsupported) — use create_widget_window
create_widget_window	unsupported	unsupported	creates a webview widget window
reload_*_timelines	AppWidget update	WidgetKit reload	emits widget-reload (+ macOS WidgetKit when linked)

Full reference

→ docs.rs/tauri-plugin-widgets
